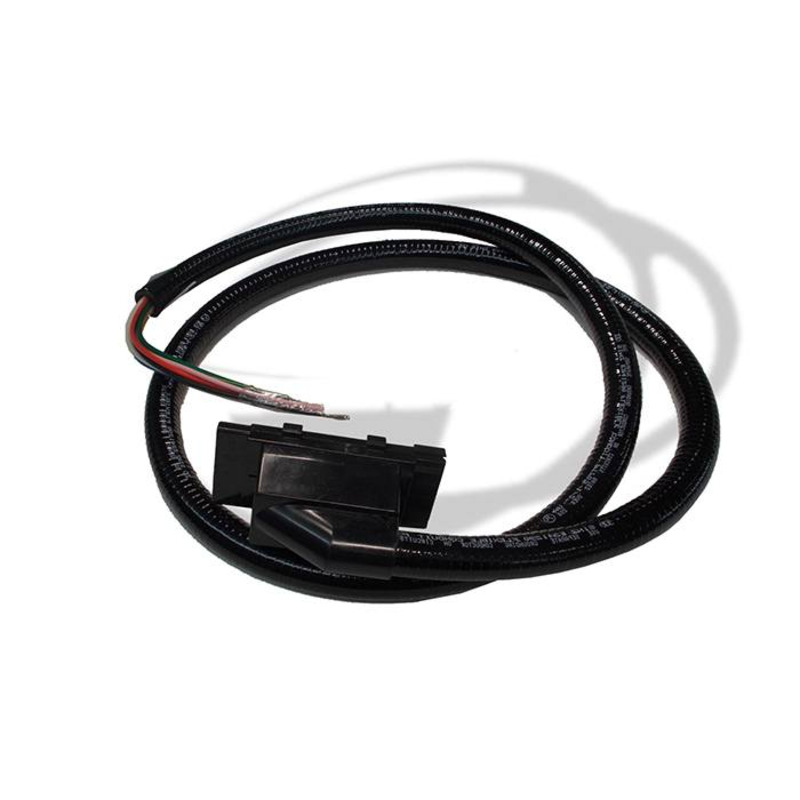

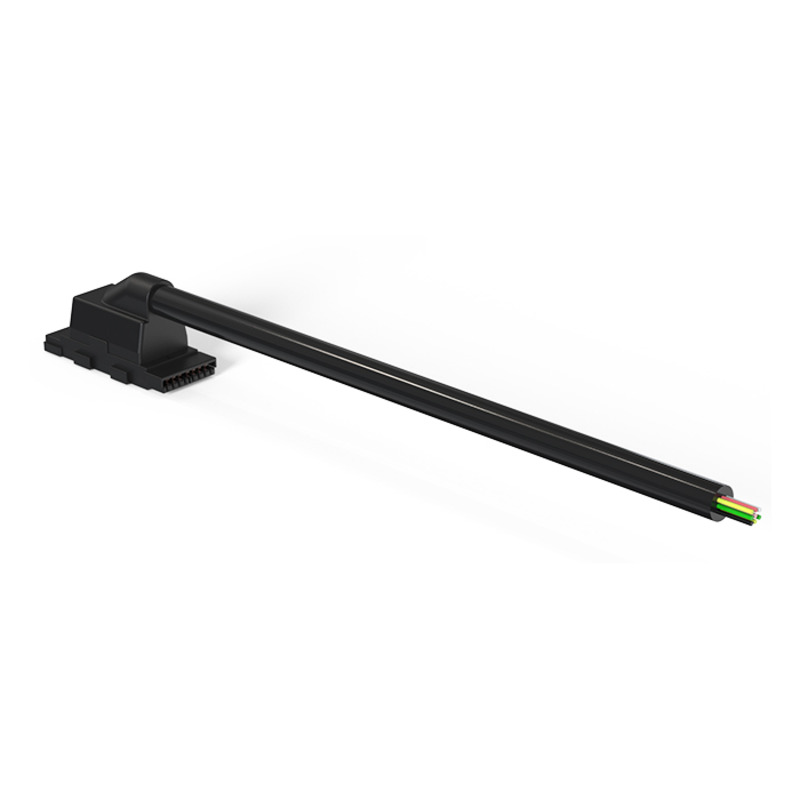

PELBSFD-R Electrical, AO, Base Feed, 4 Circuit, 8 Wire
Description
Base power harness- RIGHT HAND FEED
Seal tight cable for direct hard wire to building by a licensed electrician.
• Metal construction.
• 8 wire
• 4 circuit (3+1, 3 shared, 1 dedicated)
Feed direction is right hand. As you are facing the panel, this product plugs into a receptacle location on the right hand side of the panel and the whip feeds to the right.
IMPORTANT: This product must be hardwired to the building by a licensed electrician. This product requires 4 separate circuits to power all lines.
